DOE Pro XL Features

Microsoft Excel Integration

• Store, analyze, and present results within Excel
• No copying or pasting data to external software
• Results output directly into your workbook

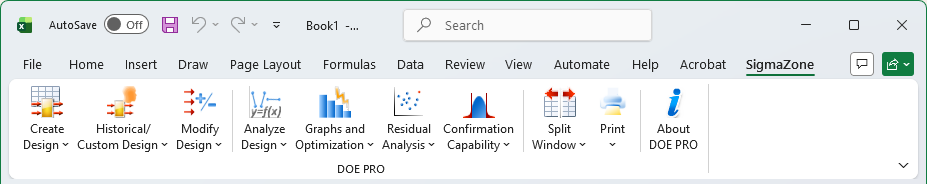

• Dedicated ribbon tab for easy access

Available Designs

2-Level Designs

• Full and Fractional Factorial
• Taguchi L4, L8, L12, L16, L32
• Plackett-Burman 8, 12, 16, 20, 24, 28

3-Level Designs

• Full Factorial
• Taguchi L9, L18, L27
• Central Composite Design (CCD)
• Box-Behnken

Custom Design

Modify Design

• Add / Remove Replicates
• Add / Remove Outputs
• Change Name, High, or Low Value
• Change Interactions
• Generate Random Responses
• Add Runs
• Randomization String

Analyze Design

• Multiple Response Regression
• Simultaneous Y-Hat and S-Hat modeling
• Model multiple responses in one model
• Coded or Uncoded Coefficients
• ANOVA
• Multiple Plots
• Marginal Means Plots
• View Aliasing Pattern

Graphs

• Interaction Plot
• Surface Plot
• Contour Plot
• Pareto of Regression Coefficients
• Main Effects (Marginal Means) Plots
• Multiple Plots view

Optimization

• Multi-Response Optimization (Genetic Algorithm)
• Optimize Y-Hat, S-Hat, or Cpk-Hat
• Define multiple constraints
• Assign weights to each constraint

Residual Analysis

Available Residuals:

• Leverage
• Residual and Studentized Residual
• R-Studentized Residual
• Cook's D

Plot Residuals vs:

• Factors, Run #, Actual Y, Predicted Y
